Material | Stainless steel SUS304, Carbon steel 40Mn |
Process | Part separated manufacturing, then assembled |
Heat treatment | Case hardening, quenching heat treatment |
Surface treatment | Blackened, Zinc galvanized, Nickel galvanized, Chroming, Colour Painting, or as per customer's request |
Performance | High precision, high wear resistance, low noise, smooth and steady, high strength |
Model number | DIN/JIS standard: C208A C208AL C208B C208BL C210A C212AL C216A C216AL C220A C220AL C224 C224AL C232A C232AL ANSI standard: C2040, C2042, C2050, C2052, C2060, C2062, C2080, C2082, C2100, C2102, C2120, C2122 |
Packaging | plastic bag ,carton box ,plywood case or customer requirement. |

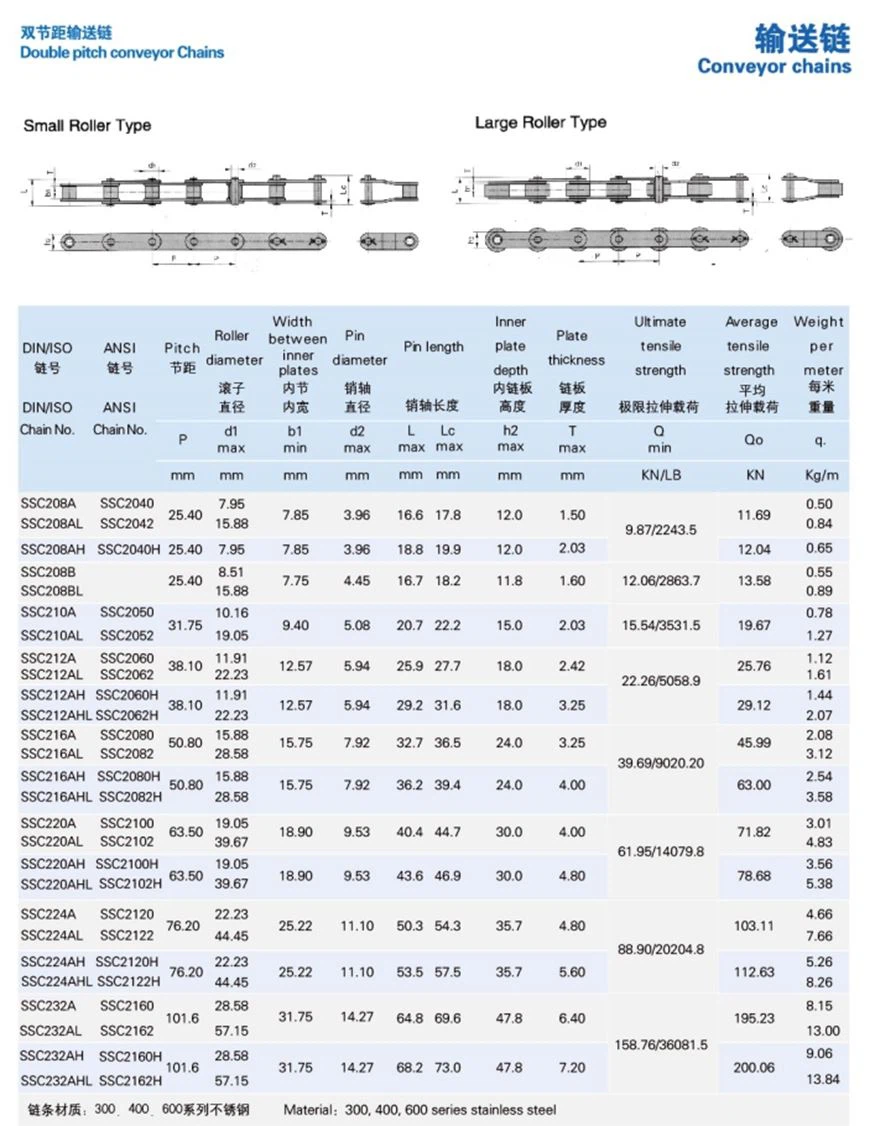

ANSI standard full name: American National Standard Institute. We also provide DIN and JIS standard, please see below technical data.
ANSI double pitch conveyor chain is an extension of short-pitch straight roller conveyor chain. Compared with the short-pitch straight plate roller conveyor chain, in addition to the chain pitch doubled, the matching pin, roller, sleeve and chain plate thickness and other dimensions are unchanged. Obviously, the extension of the pitch, The purpose is to reduce the weight of the entire chain (under the conditions of the same total chain length and the same static strength.
We exported to many countries, such as United States, Canada, Mexico, Italy, Turkey, Thailand. Vietnam, Germany, Sweden, Spain, France, etc. All we can provide certificate of origin to help customer reduce the tax at their side sea port.
High accuracy testing equipment help us to manufacture qualified chain for customers.
