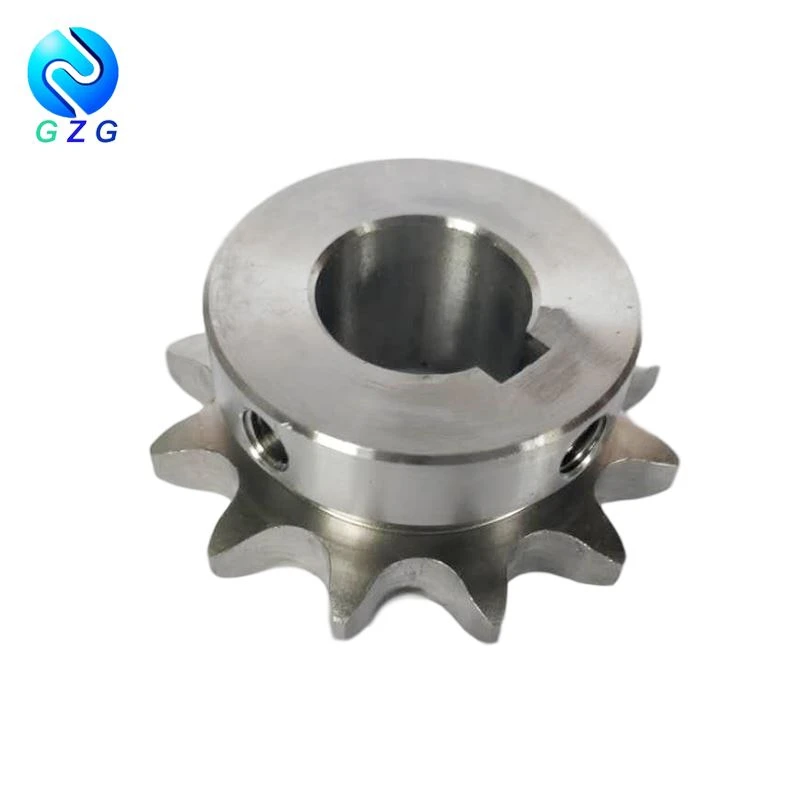

Sprocket 50B-12T Stainless Steel Material
Sprocket 50B-12T Stainless Steel Materialis widely used in food processing machinery,ship, textile machinery, petroleum machinery transmission work.

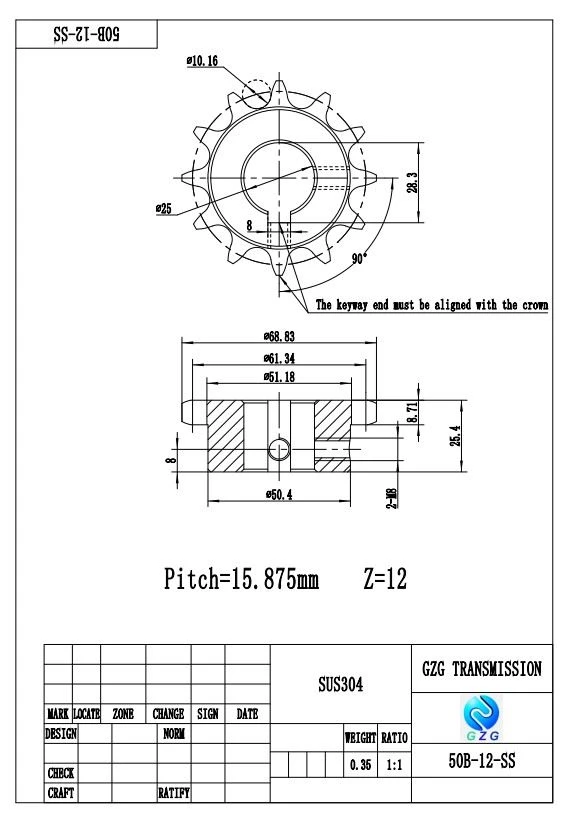

This Sprocket 50B-12T Stainless Steel Material can be with keyway, screw set. below drawing for your reference. this is the sprocket we manufacture for a USA customer.
Standard: ANSI， JIS and DIN standards can be provided for customers. below is ANSI standard for reference, if you need other stsandard ,please contact us .
<border="1" cellspacing="0">
Teeth | OD | P.C.D | Bore:d | Weight | Teeth | OD | P.C.D | Bore:d | Weight |
10 | 2.3 | 2.023 | 5/8 | 0.48 | 40 | 8.32 | 7.966 | 3/4 | 6.50 |
12 | 2.71 | 2.415 | 5/8 | 0.83 | 45 | 9.31 | 8.960 | 3/4 | 8.08 |
14 | 3.11 | 2.803 | 5/8 | 1.13 | 50 | 10.31 | 9.954 | 1 | 9.78 |
18 | 3.92 | 3.599 | 5/8 | 2.00 | 55 | 11.31 | 10.948 | 1 | 11.00 |
20 | 4.32 | 3.995 | 3/4 | 2.28 | 58 | 11.90 | 11.544 | 1 | 12.00 |
25 | 5.32 | 4.987 | 3/4 | 3.40 | 60 | 12.30 | 11.942 | 1 | 13.00 |
30 | 6.32 | 5.979 | 3/4 | 4.56 | 65 | 13.30 | 12.936 | 1 | 15.50 |
35 | 7.32 | 6.972 | 3/4 | 5.44 | 112 | 22.65 | 22.285 | 1 | 42 |
50B-12T stainless steel sprocket ：
Pitch:15.875mm
Roller diameter:10.16mm
BL :25.4mm
Weight:0.83KGS(If there is keyway and screw set, the weight will be less than this data)
This 50B-12T stainless steel sprocket use material 304 stainless steel,
304-Grade Stainless Steel is the most common grade used with sprocket. It is a non-magnetic material that is highly resistant to corrosion and can operate in temperatures ranging from -200° to +700° Fahrenheit.
Set M8 screw, bore diameter:25mm, keyway size :8mm
1. Mainly produce non-standard chains and non-standard sprockets.
2. Refined with high-density and high-quality raw materials, ultra-high carrying capacity
3. Widely promote high-quality products, perfect service, with unique superb processing technology.
4. Has a technology research and development center, sales center and professional manufacturing plant.
5. Good quality, positive service, beautiful price, satisfactory service
Every year we participate Canton Fair for two times. we also went to other countries to attend the famous exhibition. customers all over the world to visit our booth and know the products .
About packing, we will put into big Nylon bags to protect from dampness and pack into export wooden case.
If you have any inquiry or questions about stainless steel 50B-12T , you can feel free to contact us for detail
