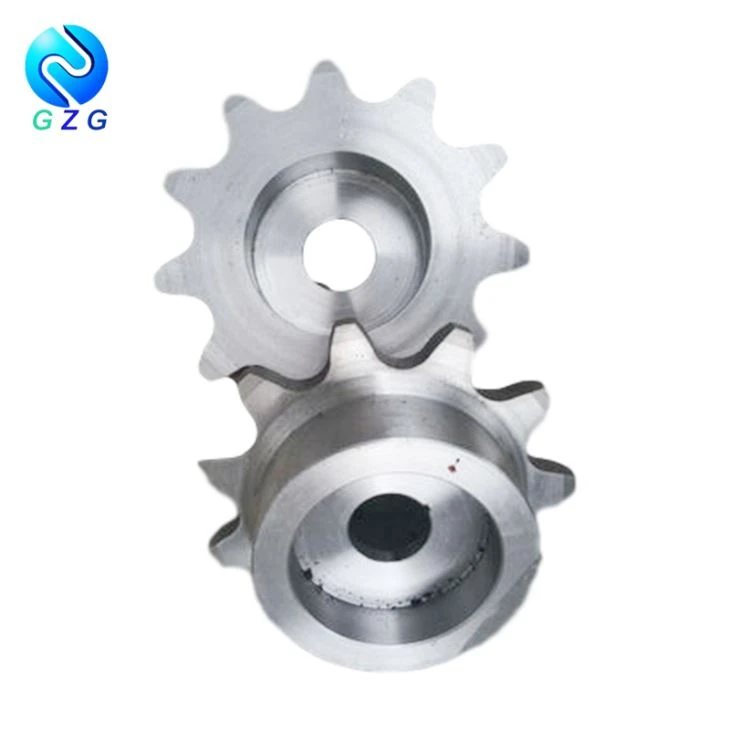

Guizhou GZG Transmission Co., Limited is one of the leading manufacturers and suppliers of sus 316 stainless steel sprocket in China, featured by quality products and good price. If you're going to buy durable sus 316 stainless steel sprocket made in China, welcome to get free sample from our factory. We also accept customized orders.
When installing the sprocket, pay attention to the proper tightness of the sprocket. If it is too tight, it will increase power consumption and the bearing is easy to wear; if it is too loose, the sprocket is easy to jump and delink. The tightness of the sprocket is: lifted or pressed from the middle of the sprocket, about 2% -3% of the center distance between the two sprockets. At the same time, there should be no swing and skew on the sprocket mounted on the shaft. In the same transmission assembly, the end faces of the two sprockets should be in the same plane. When the center distance of the sprocket is below 0.5 meters, it can deviate by 1 mm; when the center distance of the sprocket is above 0.5 meters, it can deviate by 2 mm. However, there should be no side phenomenon of friction sprocket teeth. If the two wheels are deviated too much, it is easy to produce off-chain and accelerated wear. When replacing the sprocket, care must be taken to check and adjust the offset.
When selecting the sprocket, the material of the sprocket can be selected according to the working environment of the sprocket. We provide high-end plate chain wire drawing machine sprockets, which are made of 304 stainless steel, 316 stainless steel, etc., and are widely used in many industrial applications..
We can provide DIN、ANSI、JIS standard stainless steel sprocket，Including (with DIN as an example) 06B、08B、10B、12B、16B、20B、24B、28B、32B.
Standard Material Grades:
316-Grade Stainless Steel is the second most common grade used. Some of the benefits of using a 316-grade stainless steel over 304-grade stainless steel are superior resistance to corrosion, greater resistance to chemical attack, more durable, easier to clean, easier to weld, and in most applications, it will last longer.
